Transmits HDMI video and audio signals up to 60M over a single CAT6 cable;
Support video resolution up to 1920*1080@60Hz;
Compliance with HDMI 1.3 standard;
Support local loop output;
Support HDCP1.4;
Support reverse IR transmit;
Support POC unilateral power supply;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Easy to install, plug and play;

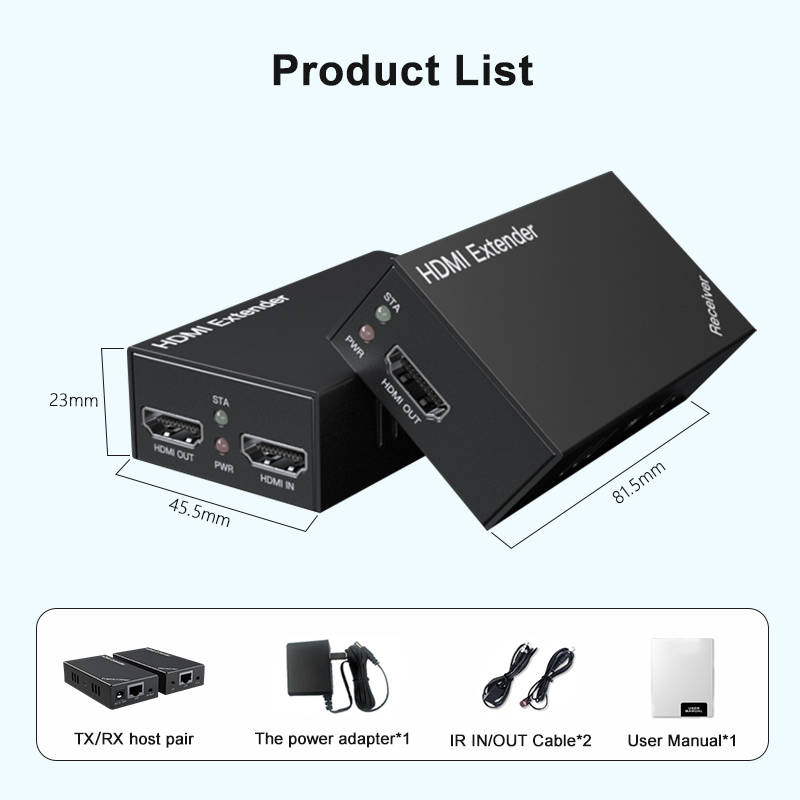

Package list
HDMI transmitter ……………………….…. 1 pcs
HDMI receiver ……………………………….. 1 pcs
Power adapter ……………………………….. 1 pcs
IR TX Cable ………………………………………1 pcs
IR RX Cable ………………………………………1 pcs
User manual …………………………………… 1 pcs
Specifications
Parameter | Description | |
Video
| Standards | HDMI 1.3;HDCP1.4 |
Maximum pixel clock | 165MHz | |
Maximum data rate | 6.75Gbps | |
Resolution | 1920X1080@60Hz | |
Connector | HDMI-A | |
Impedance | 100Ω | |
Ethernet | Interface | RJ45 |
Transmission distance | CAT6---60M | |
IR | Interface | 3.5mm earphone seat |
Signal direction | Reserve direction | |
IR frequency | 20~60KHz | |
Other | Power supply | The power adapter: DC 5-12V |
Power dissipation | MAX 3W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 81.5*45.5*23 mm | |
The warranty | 1 year free warranty | |
Panel
Transmitter:
Receiver:
Port name | Description |
HDMI IN/HDMI OUT | HDMI signal input/output |
UTP | RJ45 network interface |
DC 5-12V | Power adapter socket |
IR IN / IR OUT | IR input / IR output |
LED indicator | Description |
PWR | System power indicator |
STA | HDMI signal indicator |
Installation
1、 Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source,
2、 Connect the HDMI output port of receiver to the display device with HDMI cable,
3、 Connect the transmitter UTP port to the receiver UTP port using a single CAT6 cable.
4、 Connect the provided DC 5-12V power supplies to the power socket of the transmitter or the receiver,
5、 When the video is not clear or unstable, it can be adjusted automatically through the EQ button
Diagram
Warranty
Please keep the user manual in a place where safety and easy to find so that you can read it immediately when meet problems.
safety instruction:
l Please do not disassemble this product by yourself because it doesn't including DIY function.
l Please don't make the product touch water in case damaged, because it is Not waterproof design.
l Please use dry cloth material when clean the product surface.
l Please do not use this product in the environment of too wet or too high temperature.
l Please avoid contact with corrosive substances.
l When there is damage or other physical damage to the product, please stop using and contact with customer service to get support.
