Product Introduction
The HDMI extender transmits high-definition audio and video through a CAT5e/CAT6 network cable. It is based on the TCP/IP standard and supports one-to-many applications through Ethernet. The device has excellent image processing and transmission capabilities, making signal transmission smoother and more stable. It is an economical and efficient solution for HDMI signal extension.
Main Features
Long Distance Transmission: Transmits HDMI video and audio signals up to 200 meters over a single CAT6 cable.
High Resolution Support: Supports video resolution up to 1920*1080p@60Hz.
Flexible Application: Supports one-to-many applications through an Ethernet switch/router.
Standard Compatibility: Complies with HDMI 1.3 and HDCP 1.2 standards.
High Compatibility: Automatically matches source and display devices.
Auto Adjustment System: Built-in automatic adjustment system ensures smooth, clear, and stable images.
Easy Installation: Plug and play for convenience.

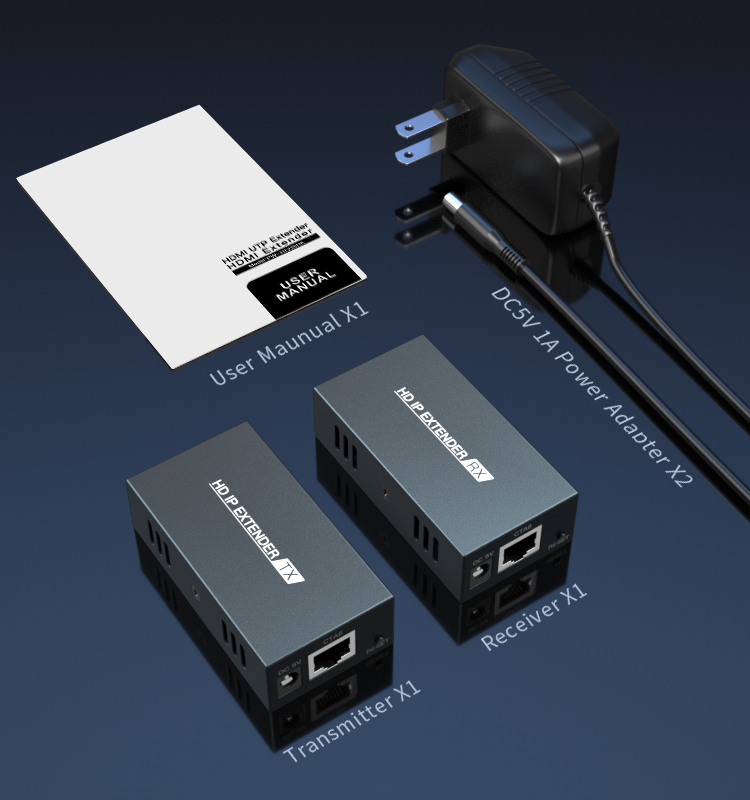

Package list
HDMI transmitter ……………………….……. 1 pc
HDMI receiver …………………………………. 1 pc
Power adapter ……………………………….... 2 pcs
User manual …………………………………..… 1 pc
Specifications
Parameter | Description | |
Video | Standards | HDMI 1.3; HDCP 1.2 |
Maximum pixel clock | 165MHz | |
Maximum data rate | 6.75Gbps | |
Resolution | Max: 1920X1080p@60Hz | |
Connector | HDMI-A | |
Impedance | 100Ω | |
Ethernet | Interface | RJ45 |
Transmission distance | CAT6---150M | |
Other | Power supply | The power adapter: DC 5V |
Power dissipation | MAX 2.5W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 81*45*23mm | |
The warranty | 1 year free warranty | |
Panel
Port name | Description |
HDMI IN/HDMI OUT | HDMI signal input/output |
Cat5e/6 | Ethernet interface |
DC 5V | Power adapter socket |
RESET | Press for 5 second to restore system setting to factory default |
LED indicator | Description |
STATUS | Video signal connection indicator/System power indicator |
Installation
1、 Connect the signal source to the transmitter of the HDMI extender,
2、 Connect the HDMI extender the receiver to display devices (such as high-definition TV, splicing screen, etc.),
3、 Using CAT6 types of cables connects the transmitter and the receiver network interfaces,
4、 The transmitter and the receiver connected to the power, when the lamp lights up normally, normal operation of system.
Warranty
Please keep the user manual in a place where safety and easy to find so that you can read it immediately when meet problems.
safety instruction:
Please do not disassemble this product by yourself because it doesn't including DIY function.
Please don't make the product touch water in case damaged, because it is Not waterproof design.
Please use dry cloth material when clean the product surface.
Please do not use this product in the environment of too wet or too high temperature.
Please avoid contact with corrosive substances.
When there is damage or other physical damage to the product, please stop using and contact with customer service to get support.
