DT261W-H Wireless HDMI Extender
Product Description:
The DT261W-H Wireless HDMI Extender is a high-performance device designed to wirelessly transmit high-definition video and audio signals from a source device to a display device. Perfect for both home entertainment and professional presentations, this extender ensures a seamless and high-quality viewing experience.
Key Features:
High-Resolution Support: Capable of transmitting up to 3840x2160@30Hz, delivering ultra-clear 4K UHD video.
Multiple Interfaces: Includes HDMI and Type-C to HDMI adapter, making it versatile for different devices such as laptops, PCs, and monitors.
Long Transmission Distance: Supports a maximum transmission distance of 30 meters (approximately 98.43 feet), ensuring flexibility in setup.
Stable Signal Transmission: Operates on a 5G frequency band for fast and stable signal transmission, minimizing lag and interference.
Easy Installation: Simple plug-and-play setup with no additional drivers required. Just connect, power up, and start using.
LED Status Indicator: Clear LED indicators show connection status and signal transmission, making it easy to monitor device activity.
Installation Steps:
For the Receiver (RX):
Connect the USB-C cable to the Type-C interface and power supply.
Use the mini HDMI to HDMI-A cable to connect the receiver to the monitor.
For the Transmitter (TX):
Connect the transmitter’s HDMI to the signal source (such as a laptop). If you need to connect to the Type-C port of your laptop, first use the Type-C to HDMI adapter.
Power up the transmitter using the provided USB cable.
Pairing Instructions:
Receiver: Press and hold the button on the receiver (RX) for 5 seconds. The screen will display [Ready to Pair].
Transmitter: Press and hold the button on the transmitter (TX) for 5 seconds. The indicator light will flash. When the status indicator light turns on, pairing is complete.
Specifications:
Power Supply: DC 5V
Power Dissipation: MAX 3.5W
Operating Temperature: -5℃ to +70℃
Operating Humidity: 5% to 90%
Dimensions:
Transmitter (TX): 622411mm
Receiver (RX): 654018.2mm
Frequency Band: 5G
Connector Types:
Transmitter (TX): HDMI-A
Receiver (RX): Mini HDMI
Transmission Distance: ≤30M
Standards: HDMI 1.4, HDCP 1.4
Interface Bandwidth: HDMI total bandwidth 10.2Gbps, Pixel Bandwidth 340MHz

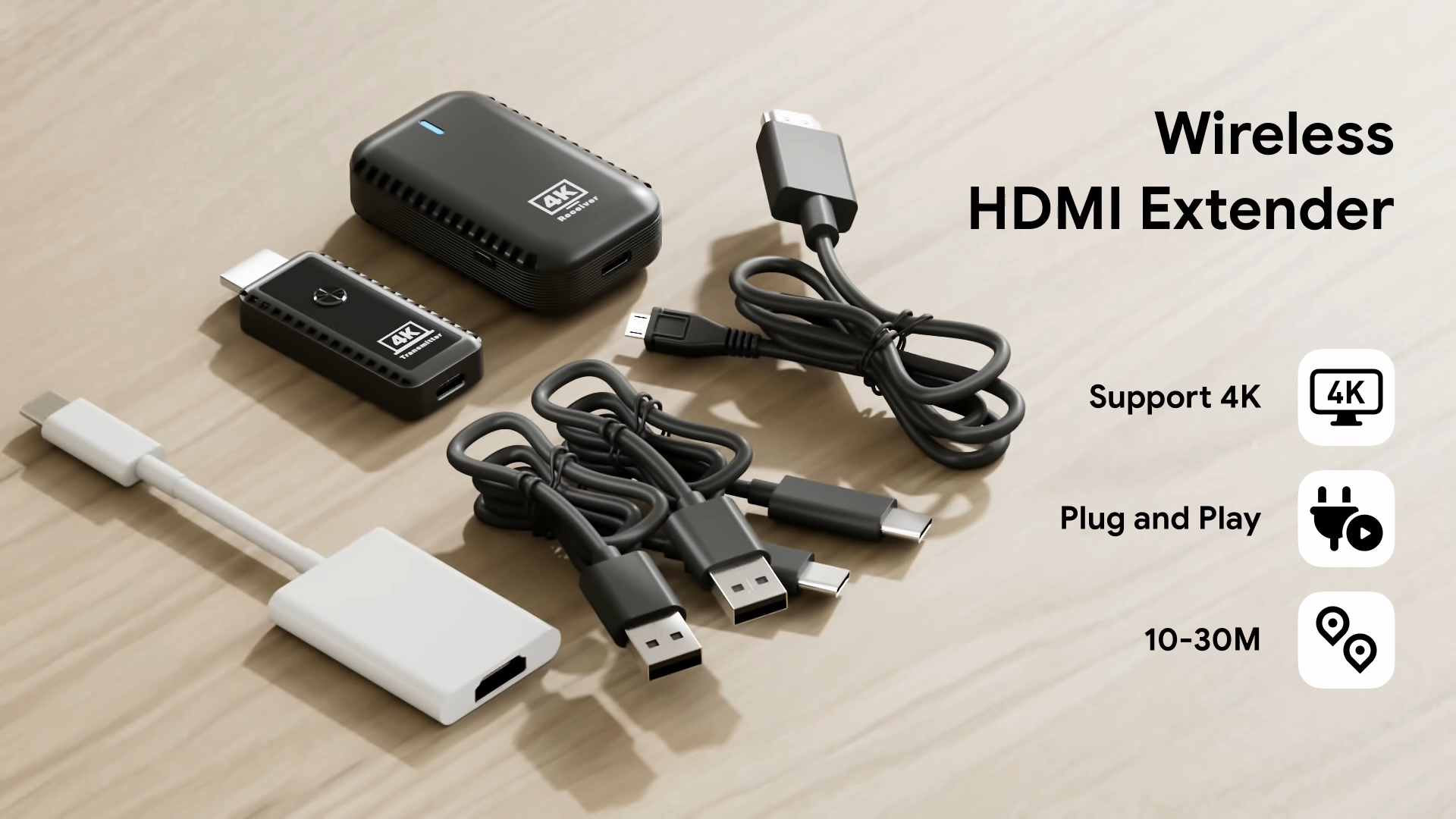

Package Includes:
Wireless Transmitter
Wireless Receiver
Mini HDMI to HDMI-A Cable
USB-A to USB-C Cable
Type-C to HDMI Adapter
User Manual
Warranty Card
Warranty and Support:
We provide a 1-year free warranty and lifetime maintenance service for the DT261W-H Wireless HDMI Extender. During the one-year warranty period from the date of purchase, free maintenance services are available for hardware failures caused by product quality issues.
Usage Tips:
Do not disassemble the product yourself.
Please keep the product from water and avoid using it in excessively humid or hot environments.
Use a dry cloth to clean the product surface.
Avoid contact with corrosive substances.
If the product is damaged, stop using it and contact customer service for support.
