Support free switching between two ultra high definition audio and video signal sources and USB signals;
Support DP1.4 standard and USB3.0 protocol ;
Support resolution up to 7680*4320@60Hz, backward compatibility ;
Support maximum data transfer rate 5Gbps for USB3.0 ;
Support the wire-desktop controller to control the machine switch;
Automatic adaptation of EDID, able to adapt to a variety of complex application environments;
Ability to automatically identify and configure various display modes;
Built-in automatic equalization system, making the picture smoother, clearer and more stable;
Simple and easy to install, plug and play, no need to set up further
Package list
DP 2*1 KVM Switcher Host | 1 Pcs |
USB-A to USB-A USB3.0 Cable | 2 Pcs |
Wire-Desktop Controller | 1 Pcs |
3.5mm Audio Cable | 1 Pcs |
User Manual + Warranty Card | 1 Set |
Foot Pad | 4 Pcs |
Specifications
Parameter | Description | |
Video | Standards | DP1.4 |
Maximum Data Rate | 32.4Gbps | |
Maximum Resolution | 7680*4320@60Hz (4:2:0 24bpp or DSC); 7680*4320@30Hz; 3840*2160@144Hz(4:2:2 24bpp or DSC); | |
Connector | DP Interface | |
Impedance | 100Ω | |
HDMI Cable Range | <1.5m | |
USB | Interface Protocols | USB3.0 |
Maximum Data Transfer Rate | 5Gbps | |
PC Input Interface Type | USB-A | |
Output Interface Type | USB-A，USB3.0*3 | |
Other | Power Supply | 5V power supply |
Power Dissipation | MAX 3W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 118*61.5*21mm | |
The Warranty | 1 year free warranty | |

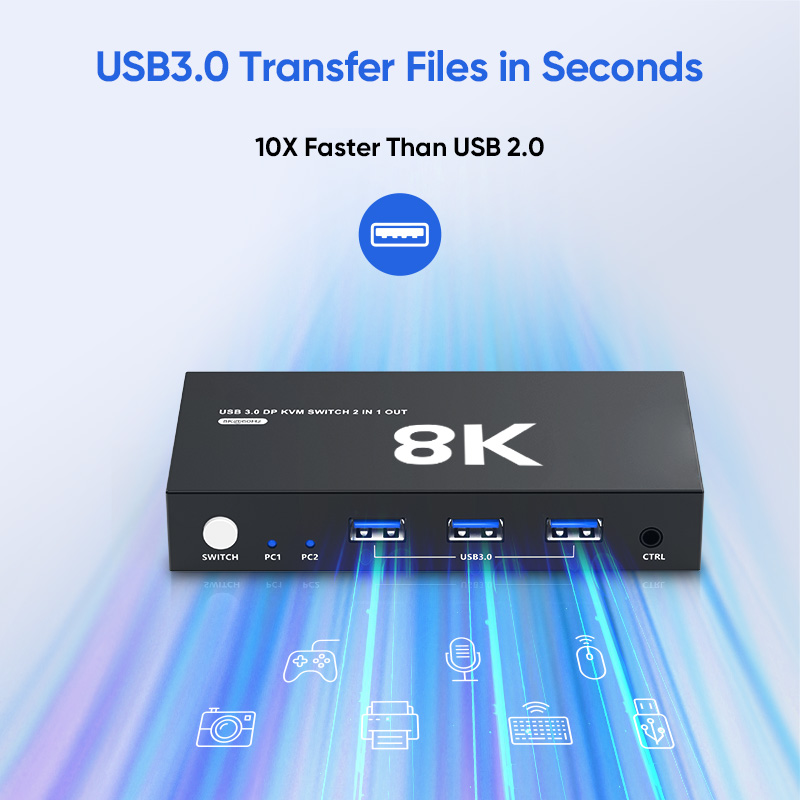

Panel
Port name | Description |
DP OUT | DP signal output interface |
PC1/USB/DP IN | DP and USB signal input interface for PC1 |
PC2/USB/DP IN | DP and USB signal input interface for PC2 |
SWITCH | PC1, PC2 signal groups switch buttons |
PC1/PC2 | PC1, PC2 signal groups selected indicators |
USB3.0 | USB3.0 device input interface |
CTRL | Wire-Desktop Controller |
Connection steps
1. Use 1 DP cable to connect the "PC1 DP IN" input interface and PC1 DP output interface.
2. Use 1 "USB-A to USB-A" USB3.0 cable to connect the "PC1 USB" input interface and PC1 USB interface.
3. Use 1 DP cable to connect the "PC2 DP IN" input interface and PC2 DP output interface.
4. Use 1 "USB-A to USB-A" USB3.0 cable to connect the "PC2 USB" input interface and PC2 USB interface.
5. Use 1 DP cable to connect the "DP OUT" output interface and monitor.
6. Use 1 3.5mm audio cable to connect the "CTRL" interface and Wire-Desktop controller;
7. Connect the USB3.0 device to the "USB3.0" interface.
8. When the"PC1" or "PC2" indicator lights up normally, the system is running normally.
Warranty
Thank you for using this product. In order to protect your rights, please read the following protection terms carefully:
We provide 1 year warranty and lifetime maintenance after-sales service for this product. During the one-year warranty period from the time of purchase, the company will provide customers with free maintenance services due to hardware failures caused by the quality of the product itself.
Please keep the user manual in a place where safety and easy to find so that you can read it immediately when needed.
Safety instruction:
Please do not disassemble this product by yourself because it doesn't including DIY function.
Please keep the product away from water in case damaged, because it is not waterproof design.
Please use dry cloth when clean the product surface.
Please do not use this product in environments that are too humid or too hot.
Please avoid contact with corrosive substances.
When there is damage or other physical damage to the product, please stop using and contact customer service to get support.
